EP 11: BDD Testing using Cucumber

Read time : 3 Mins

In today’s newsletter we are going to discuss

• Introduction of Cucumber & BDD

• Steps to write automation tests using Cucumber

• Cucumber Tags

• Background in Cucumber

• Scenario Outline in Cucumber

---

What is Cucumber ?

Cucumber is a testing approach/tool that supports Behavior Driven Development (BDD). It provides a way to write tests that anybody can understand, regardless of their technical knowledge.

It explains the behavior of the application in a simple English text using Gherkin language.

---

What is BDD (Behavior Driven Development)

In very simple words, BDD is a technique where your test cases are written in plain English like sentences. With this approach, the non-technical team members find it easy to understand the flow and collaborate more in the process of software development.

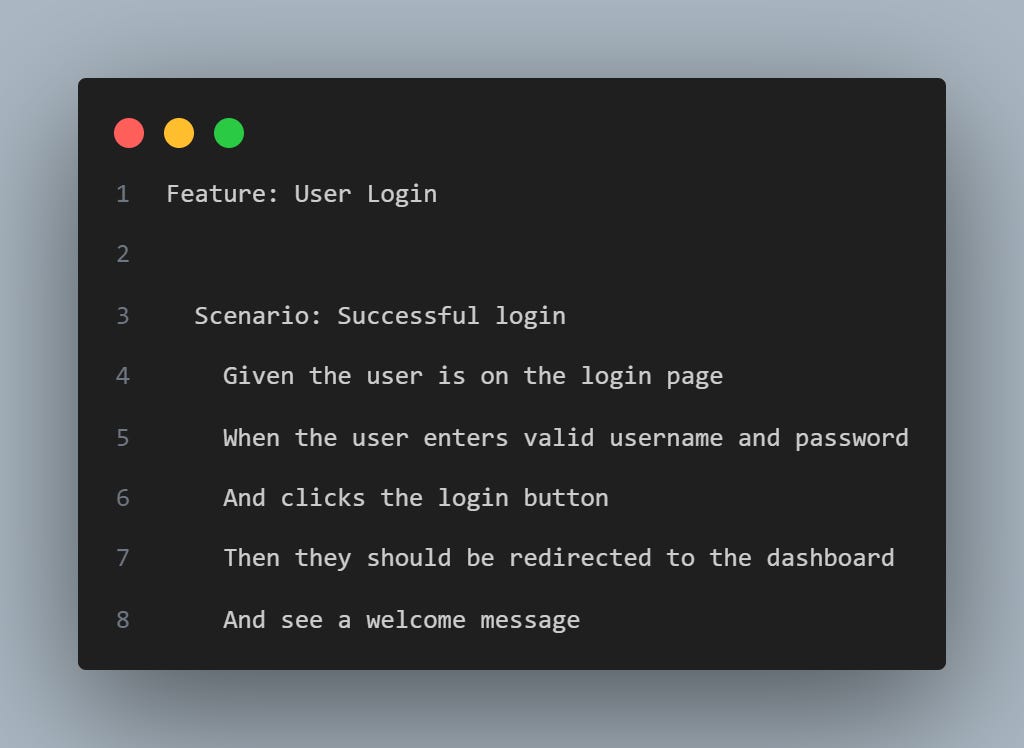

Here is one of the example of plain English written in Gherkin language. This file is also called as Feature File.

---

Steps to write automation tests using Cucumber

Prerequisite

In this newsletter, we will be using:

• Java as the programming language

• TestNG as the assertion framework

• Maven as the build automation tool

• Selenium WebDriver as the browser automation tool

• Cucumber as BDD tool

• Eclipse as the IDE


  Step 1: Write scenarios in Feature File


  Once we create feature file, we can write scenarios as shown below.

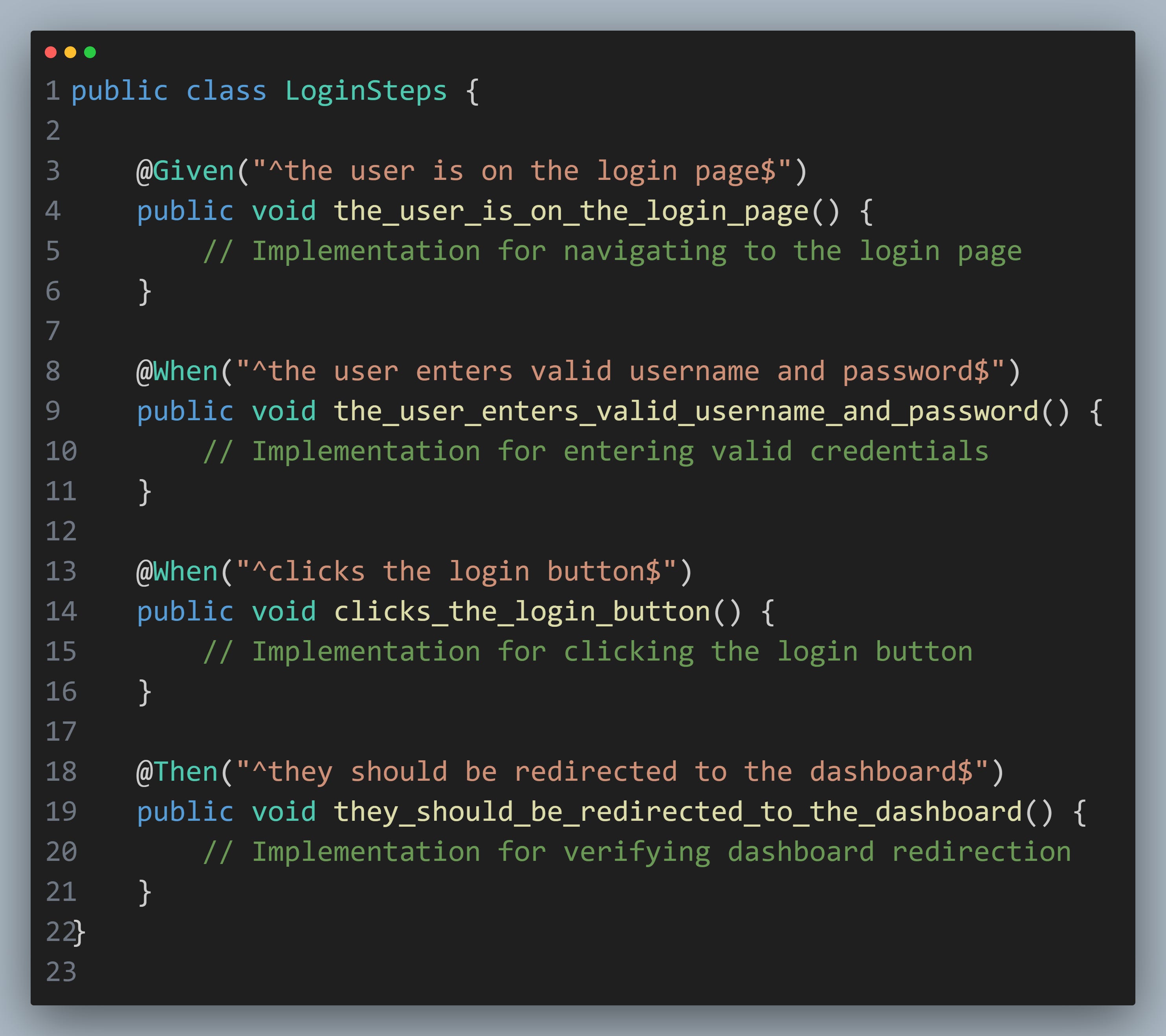

  Step 2 : Implement scenario using Step Definition File

  We can implement above scenario using Step Definition File. Step definition files contain the actual code implementation of the steps mentioned in the feature files.

  They map Gherkin steps to executable code as shown below.

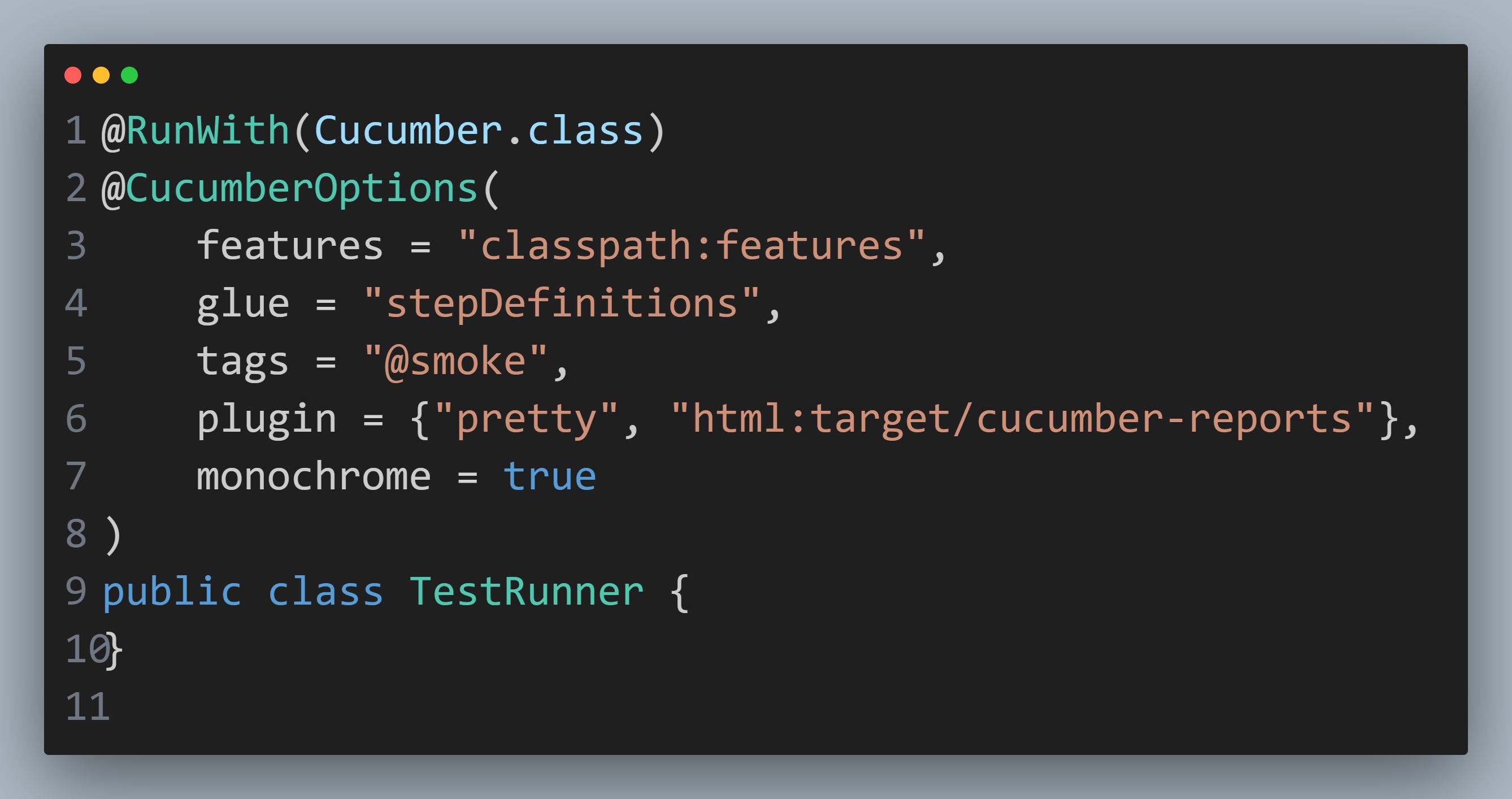

Step 3 : Create Test Runner File

A Cucumber test runner is a Java class that kicks off the execution of Cucumber scenarios. It specifies the features, step definitions, plugins, tags, and other options that you want to run.

---

Cucumber Tags

• Tags in Cucumber are used to categorize scenarios.

• We can add tags like 'smoke' & 'regression' to our feature file, and then you can run specific scenarios.

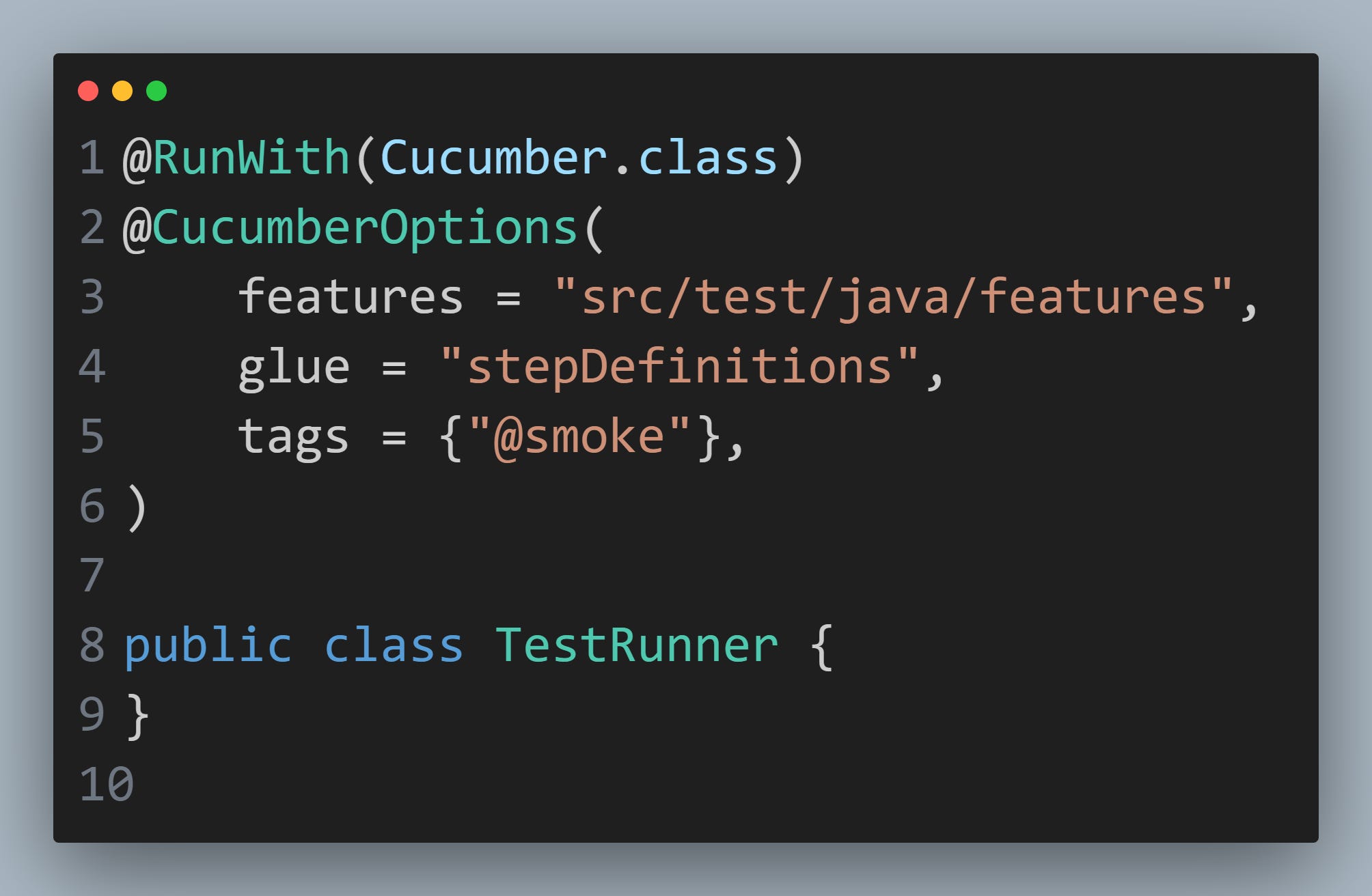

Example 1 : Executing one Tag from Test runner

Here we are executing all scenarios tagged with “@smoke” by adding tags in test runner file.

Example 2 : Executing multiple Tags from Test runner

Here we are executing all scenarios tagged with “@smoke” & “@regression” by adding tags in test runner file.

---

Background in Cucumber

Background keyword contains common steps that will be executed before each scenario in the feature file.

In the above example, we have two different scenarios where a user is purchasing product and remove product from cart. In both these scenarios, common step is to login to website for both the scenario.

This is why we create another Scenario for Log in but named it as Background rather than a Scenario. So that it executes for both the scenarios.

---

Scenario Outline in Cucumber

It allows you to run the same scenario multiple times with different sets of data.
Here's an example of how you can use Scenario Outline for parameterization.

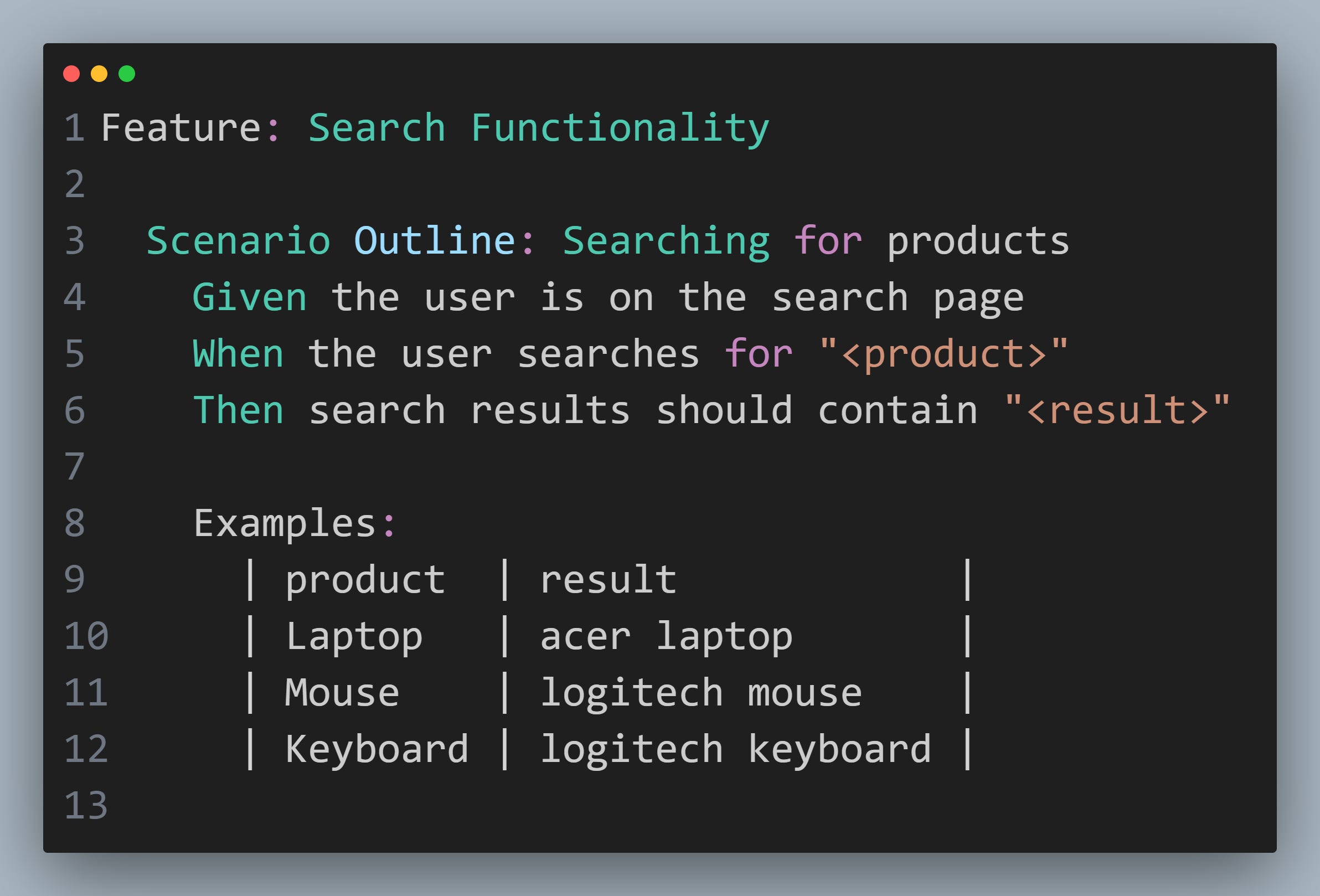

Here is an example of Feature file having scenario outline.

In this example, the <product> and <result> placeholders in the scenario outline are replaced with values specified in the Examples table. The scenario outline will be executed three times with the provided data sets.

In this step definition file, the {string} placeholders in the step definitions are replaced with the corresponding values from the feature file during execution.

---
