EP 3: How to integrate Jira with Selenium

Read time : 3 Mins

In today’s newsletter we are going to discuss

• Introduction

• How to create API Token in Jira

• Jira Integration with Selenium and Log defects in Jira

• GitHub Repo

---

Introduction

• Selenium is highly extensible, allowing you to customize and extend its functionality & hook it up with multiple services to meet your specific testing needs.

• Jira integration with Selenium can streamline your test management and bug tracking processes, allowing you to create and track issues directly from your Selenium automation tests.

---

How to create API Token with Jira

1. Navigate to your Jira website. (e.g. https://xyz.atlassian.net/)

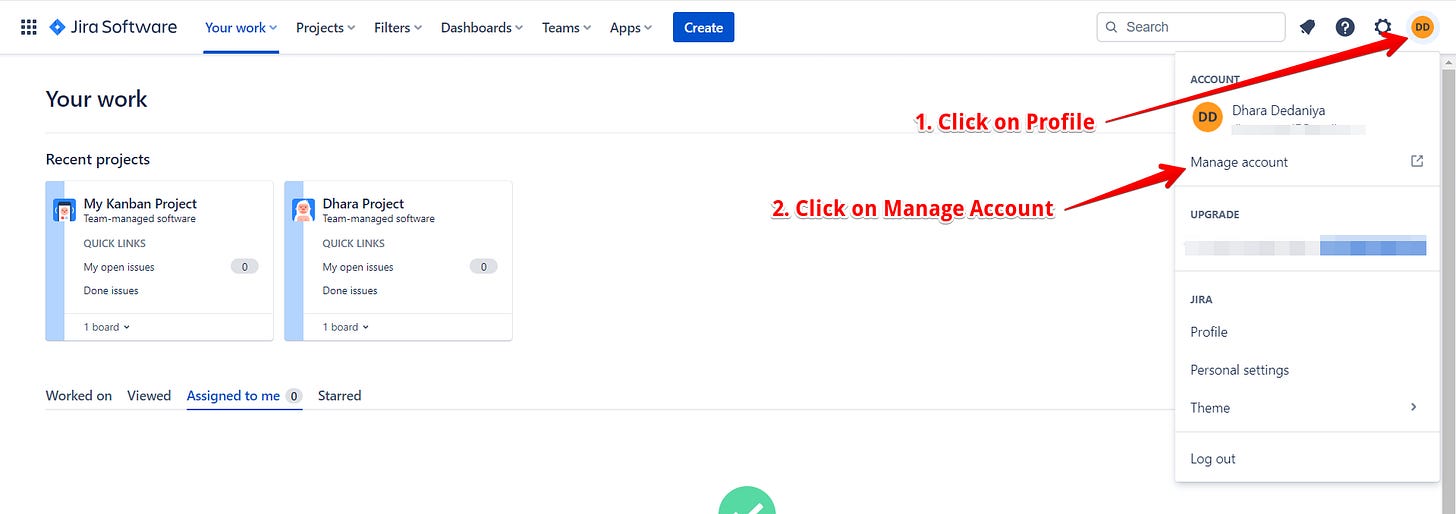

2. Once Login with Credentials, click on “Profile & Settings”.

3. Click on “Manage Account”.

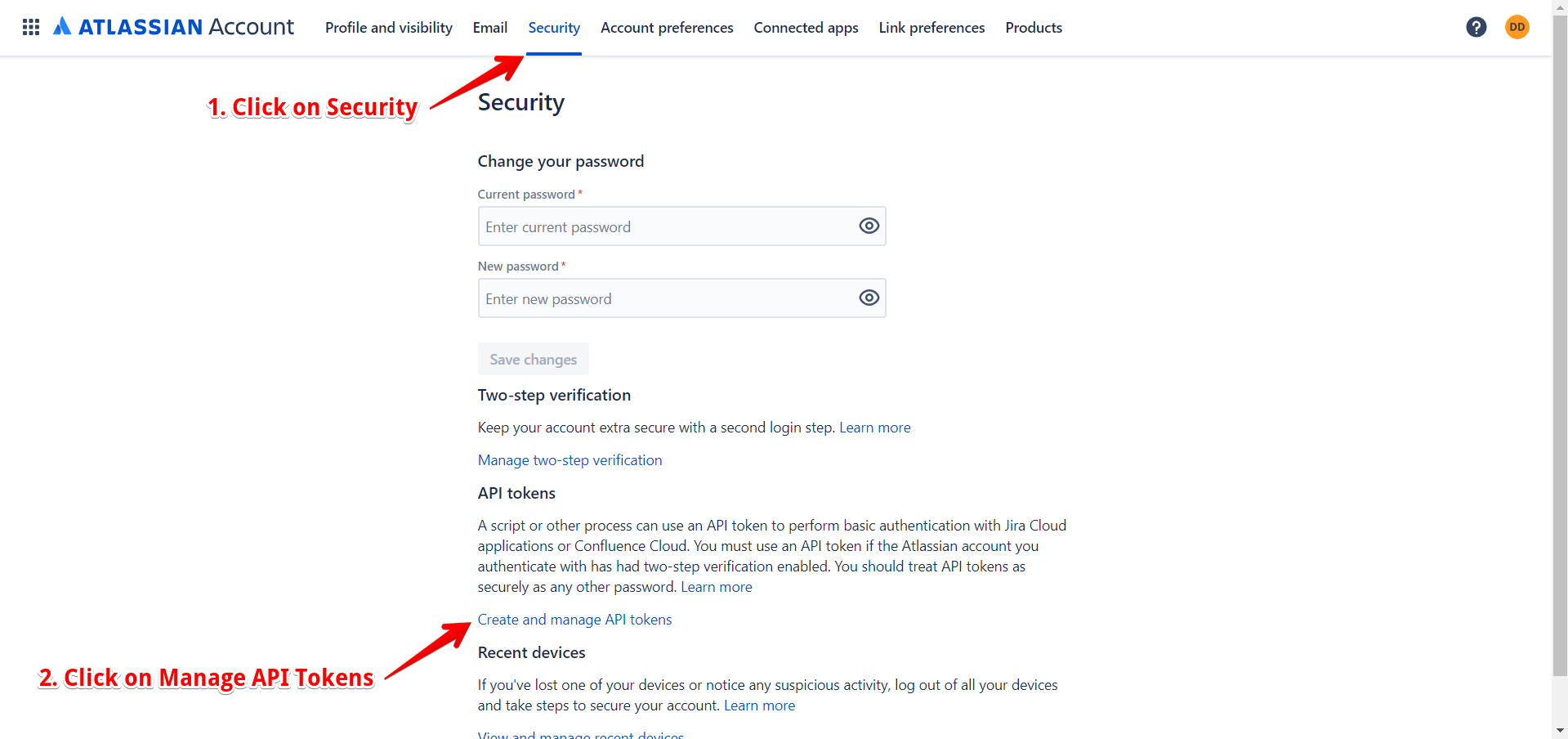

4. Click on “Security” tab from the header and click on “Create and Manage API Token”.



5. Then, Click on “Create API Token”.

6. Enter the Label name and then click on “Create”.



7. Once token is generated, save it in your desired location.

The token is not accessible once, pop up window is closed. So it is advisable to copy and save token at desired location.

Jira API token will be useful to call Jira Rest API Endpoint from Selenium Tests.

---

Jira Integration with Selenium and Log Defects in Jira

Prerequisites:

1. Eclipse or IntelliJ IDE

2. Project Setup with TestNG & Maven

Problem Statement:

When User executes selenium tests and any of them got failed, Jira bug ticket should automatically gets created under given project. If the same ticket is being generated again, it should be skipped.

Here are the step by step explanation of this:

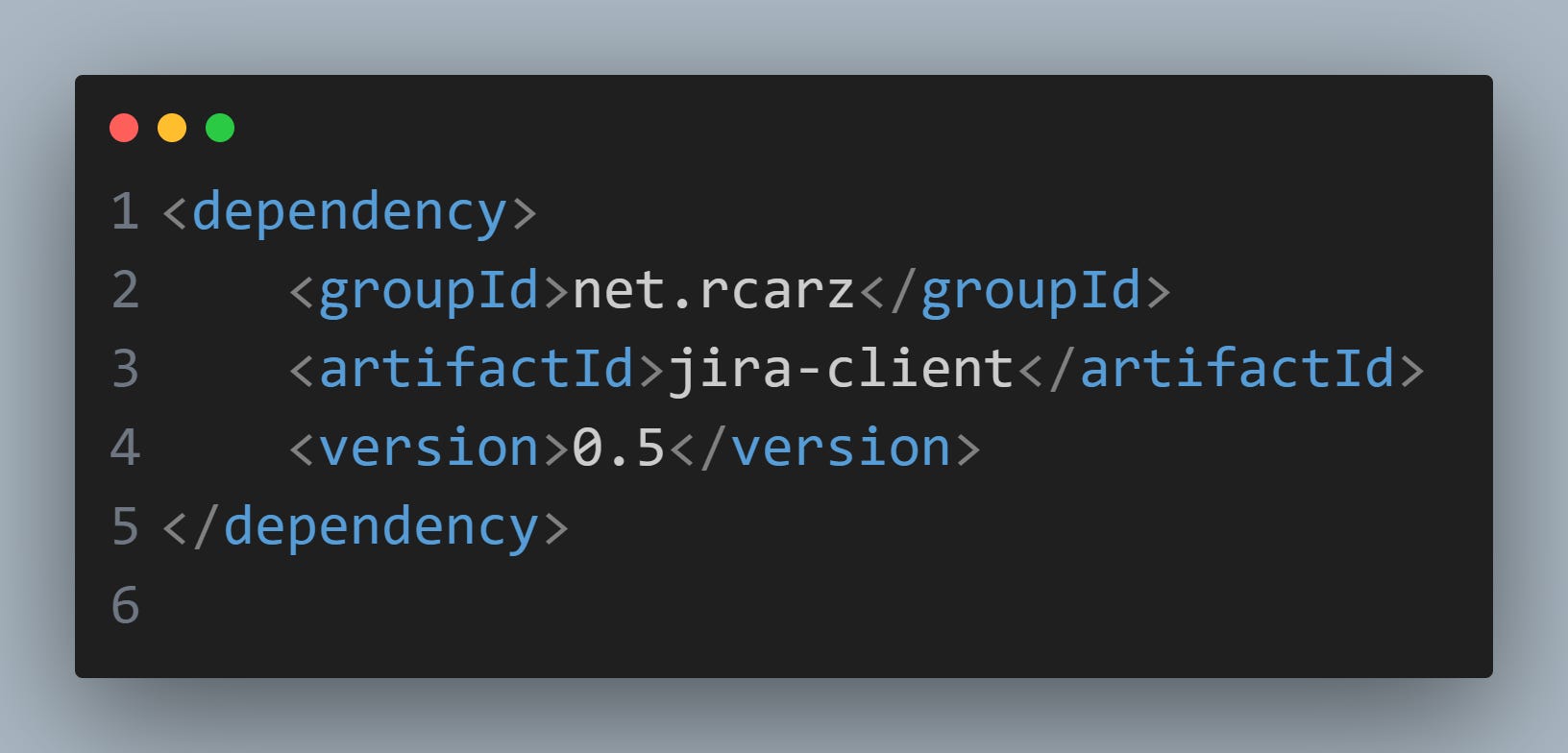

1. Add “rcarz Jira-client” dependencies in pom.xml



2. Create Selenium Automation Test



3. Create below services to handle creation of Jira Test case.

   1. JiraServiceProvider: This service is responsible for creating jira ticket when test case gets failed.



   2. JiraCreateIssueService : This service is responsible to add Custom Annotation Code.

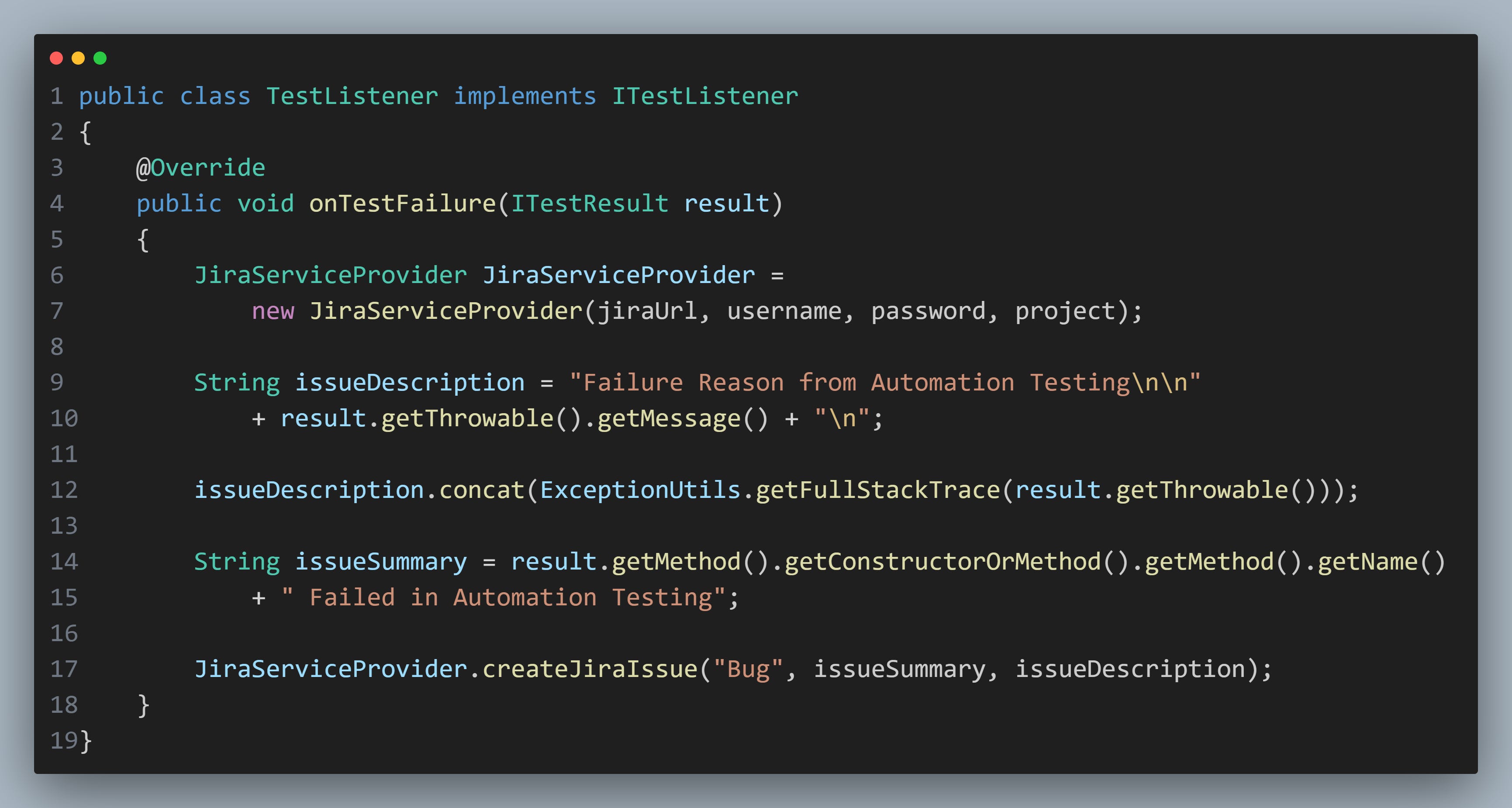

4. Create Listener to notify test failures

   Create listeners so that when the test gets failed, it will automatically create Jira issue.



Important Points to remember in “OnTestFailure“ method above.

• jiraUrl : Jira URL of your company/personnel account(e.g. “https://xyz.atlassian.net”)

• username : Usually it is your email, but depends on your configuration.

• password: This is the APIToken generated from Jira as explained in above section. Login Password will not work here.

• project: This is a project key. Often denoted as two letters only(e.g. DD)

How to generate Project Key?

1. Navigate to Jira URL (“https://xyz.atlassian.net”)

2. Click on Project menu and then Project settings. (You might need to create new Project if default project is not available)



   3. Look at the Key Field.

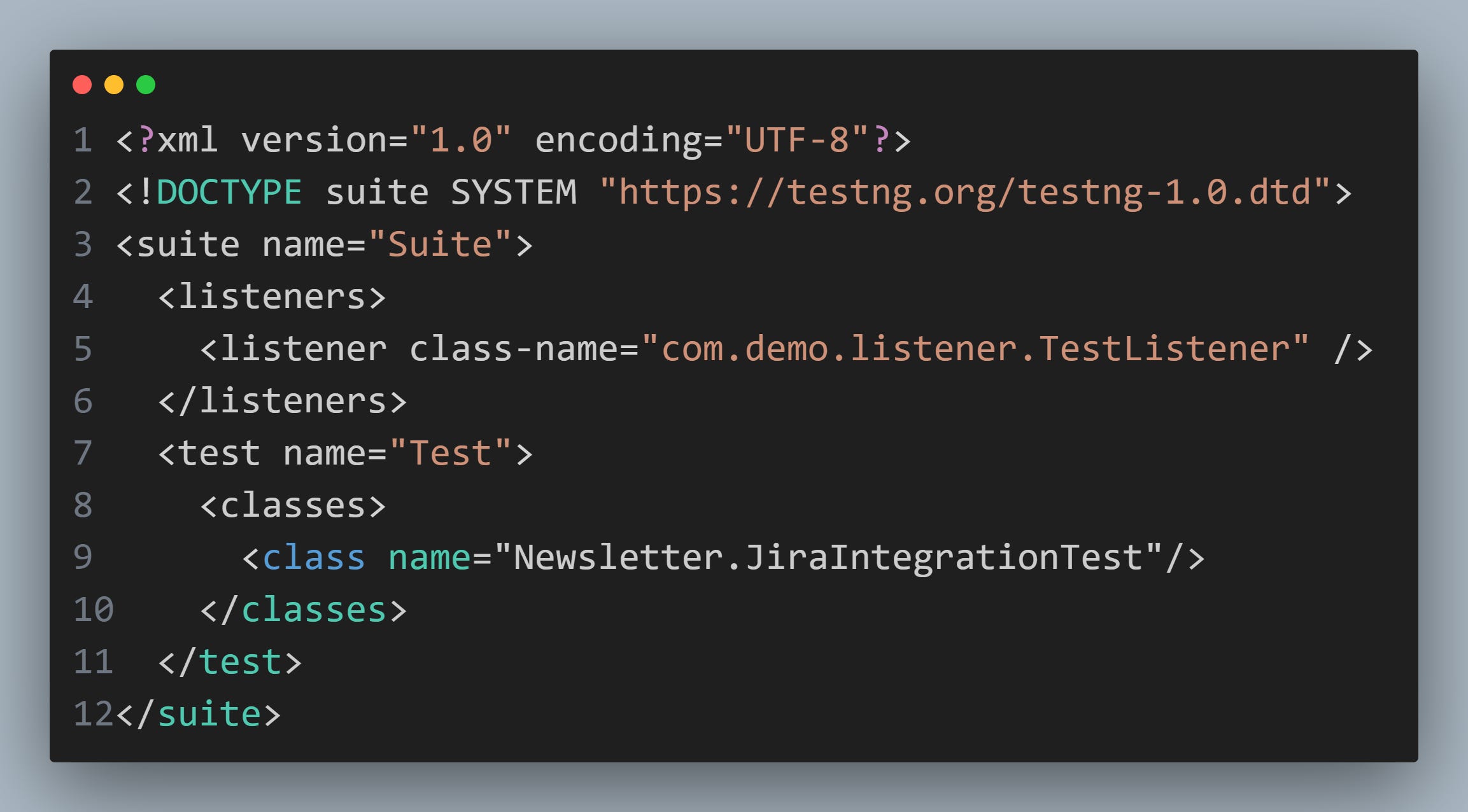

5. Configure TestNg XML file

6. Execute your tests



7. Ensure Jira Tickets gets created



---

GitHub Repository

You can find code of this newsletter issue at this GitHub Repository

---
